When your car’s check engine light comes on, you might see a trouble code related to “Bank 1 Sensor 2” or “Bank 2 Sensor 1. ” For many drivers, these terms are confusing. What do “Bank 1” and “Bank 2” mean?
Where are the sensors located? And why does this matter for repairs or diagnostics? If you are not a car expert, understanding these sensor locations is important for solving engine problems efficiently and avoiding costly mistakes. This guide will explain everything in simple English, with clear examples and practical tips.
By the end, you will know how to identify Bank 1 and Bank 2 sensors, their roles, and how to avoid common errors that even some mechanics make.
What Are Bank 1 And Bank 2?
In many cars, especially those with V-shaped engines (V6, V8, V10), the engine has two separate sides or “banks.” Each bank has its own set of cylinders.
- Bank 1: This is the side of the engine that contains cylinder number 1.
- Bank 2: This is the other side, opposite to Bank 1.
If your engine is an inline-4 or inline-6, there is only one bank, so you will not see Bank 2. But for V engines, knowing the difference is essential.
Example: How To Identify Banks
Imagine a V6 engine. It has three cylinders on each side:
- One side: Cylinders 1, 3, 5 (Bank 1)
- Other side: Cylinders 2, 4, 6 (Bank 2)
But not all engines number their cylinders the same way. Always check your car’s service manual for the exact cylinder order.
Oxygen Sensors: What Do They Do?
Oxygen sensors (O2 sensors) measure the amount of oxygen in your car’s exhaust gases. This information helps the engine control the air-fuel mixture, which affects fuel economy, emissions, and engine performance.
Most modern cars have at least two O2 sensors per bank:
- Sensor 1: Located before the catalytic converter (upstream). It measures oxygen in exhaust just after it leaves the engine.
- Sensor 2: Located after the catalytic converter (downstream). It checks how well the catalytic converter is working.
Some cars have more sensors, but these are the main two you’ll see.
Why The Sensor Location Matters
If a sensor fails or gives bad data, your engine may run poorly, use more fuel, or fail emission tests. Replacing the wrong sensor wastes money and doesn’t fix the problem. Knowing exact locations saves time and prevents errors.
Bank 1 Vs Bank 2 Sensor Locations Explained
Understanding the exact position of each sensor is crucial. Here is how you can identify Bank 1 and Bank 2 sensor locations in most vehicles.
Bank 1 Sensor 1
- Position: Upstream (before catalytic converter) on Bank 1
- Role: Main sensor for air-fuel mixture adjustment
- Importance: Critical for smooth engine operation
Bank 1 Sensor 2
- Position: Downstream (after catalytic converter) on Bank 1
- Role: Monitors catalytic converter efficiency
- Importance: Required for emission compliance
Bank 2 Sensor 1
- Position: Upstream (before catalytic converter) on Bank 2
- Role: Controls fuel for Bank 2 cylinders
- Importance: Ensures Bank 2 runs cleanly
Bank 2 Sensor 2
- Position: Downstream (after catalytic converter) on Bank 2
- Role: Checks catalytic converter’s performance on Bank 2
- Importance: Also important for emission systems
Quick Comparison Table

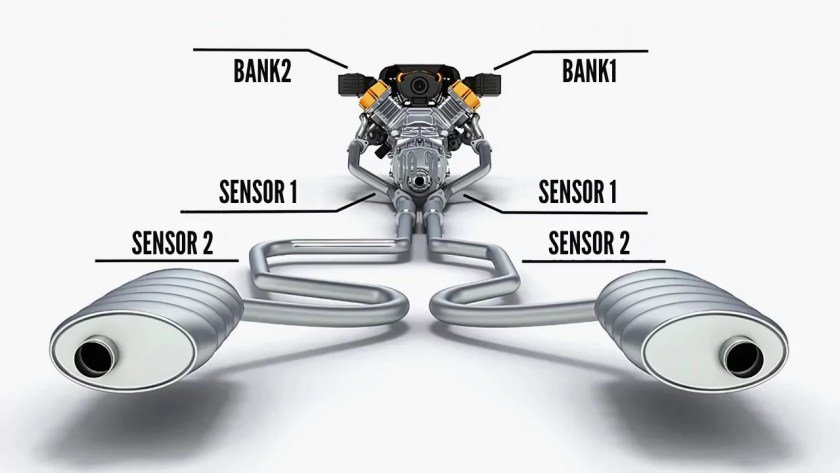

Here’s a simple layout to help you visualize sensor locations on a V6 or V8 engine:
| Sensor Name | Bank | Upstream/Downstream | Location |
|---|---|---|---|
| Bank 1 Sensor 1 | 1 | Upstream | Before catalytic converter, same side as cylinder 1 |
| Bank 1 Sensor 2 | 1 | Downstream | After catalytic converter, same side as cylinder 1 |
| Bank 2 Sensor 1 | 2 | Upstream | Before catalytic converter, opposite side of cylinder 1 |
| Bank 2 Sensor 2 | 2 | Downstream | After catalytic converter, opposite side of cylinder 1 |
How To Find Bank 1 And Bank 2 On Your Car
Finding the right bank is not always simple. Manufacturers have different layouts. But here are practical steps:
- Find Cylinder 1: Check the engine cover or service manual. Sometimes, there are stickers or diagrams in the engine bay.
- Trace the Exhaust Manifold: See which exhaust pipe leads from cylinder 1. That side is Bank 1.
- Look for Sensor Connectors: Sensors are often easy to spot. They have wires and are screwed into the exhaust pipes.
- Use a Scan Tool: OBD-II scanners can tell you which sensor is giving an error. Some tools show real-time data, so you can unplug a sensor to see which reading changes.
Example: Toyota V6
On a Toyota Camry V6, Bank 1 is near the firewall (back of engine), and Bank 2 is near the radiator (front). But on some Nissan V6 engines, it is the opposite. Always double-check with your manual.
Credit: www.youtube.com
Why Sensor Location Matters For Repairs
If you get a trouble code like P0420 (catalyst efficiency below threshold, Bank 1), you need to know exactly which side and which sensor is involved. Replacing the wrong sensor is a common and costly mistake.
Two Common Mistakes
- Confusing sensor numbers: Some people think Sensor 1 is always on the passenger side, but it depends on the engine design.
- Mixing up upstream and downstream: Upstream means before the catalytic converter, downstream means after. The position along the exhaust pipe, not the direction in the engine bay, is what matters.
How Engine Types Affect Sensor Locations
The layout of the engine changes everything. Here’s a quick overview:
| Engine Type | Banks Present? | Number of Sensors | Example Car |
|---|---|---|---|
| Inline-4 | Only Bank 1 | Usually 2 | Toyota Corolla |
| V6 | Bank 1 and Bank 2 | 4 or more | Honda Accord V6 |
| V8 | Bank 1 and Bank 2 | 4 or more | Chevy Silverado V8 |
How To Replace Bank 1 Or Bank 2 Sensors
You can replace O2 sensors at home if you have the right tools. Here’s how to do it safely:
- Buy the Correct Sensor: Make sure it matches your car’s make, model, year, and the right bank and sensor number.
- Let the Engine Cool: Sensors get very hot. Wait at least 30 minutes after running the car.
- Locate the Sensor: Use your manual or look for the sensor on the correct bank and position (upstream or downstream).
- Disconnect the Battery: Prevents electrical shorts.
- Unplug the Sensor: Sensors have a connector. Carefully unplug it.
- Remove with Special Socket: Use an O2 sensor socket to avoid damaging the wires.
- Install New Sensor: Thread it by hand first, then tighten with the socket.
- Reconnect Everything: Plug in the sensor and reconnect the battery.
- Clear Trouble Codes: Use a scan tool to reset the check engine light.
Practical Tips
- Don’t use anti-seize unless recommended by the sensor manufacturer. Some new sensors come pre-treated.
- If the sensor is stuck, use penetrating oil. Never force it; you could damage the threads.
- Avoid touching the sensor tip with your fingers. Oil from your skin can damage it.
How Faulty Sensors Affect Your Car
A bad O2 sensor can cause several problems:
- Poor fuel economy: The engine may run rich (too much fuel) or lean (too little fuel)
- Higher emissions: Your car may fail inspection
- Rough idle or stalling: Engine performance drops
- Check engine light: Trouble codes will appear
In rare cases, a bad downstream sensor can cause the engine computer to think the catalytic converter is bad, leading to expensive and unnecessary repairs.
Credit: www.youtube.com
Real-world Examples
Many drivers have replaced the wrong sensor because they assumed Bank 1 is always on the driver’s side. For example, on some Ford trucks, Bank 1 is on the passenger side. The cylinder numbering can be confusing.
Another common problem: Some cars have two catalytic converters per bank. This means even more sensors, and the numbering can be different. Always refer to your vehicle’s service manual or look up diagrams online.
How Manufacturers Differ
Every car brand has its own rules for cylinder numbering and sensor placement. Japanese, American, and European cars can all be different. For example:
- GM: Cylinder 1 is usually on the driver’s side.
- Toyota: Cylinder 1 is usually near the firewall.
- BMW: Sometimes uses different numbering altogether.
If you are not sure, use a scan tool that can show live sensor data. Unplug one sensor at a time and see which value drops to zero. This helps you confirm the exact sensor.
Sensor Replacement Cost Comparison
Here is a cost comparison for replacing Bank 1 vs Bank 2 sensors in common cars:
| Car Model | Sensor Part Cost | Labor Cost (Estimate) | Total Cost |
|---|---|---|---|
| Honda Accord V6 | $60–$120 | $80–$120 | $140–$240 |
| Chevy Silverado V8 | $50–$100 | $100–$150 | $150–$250 |
| Toyota Camry V6 | $70–$130 | $90–$130 | $160–$260 |
Doing it yourself can save you money, but only if you replace the correct sensor.
Non-obvious Insights Beginners Miss
- Sensor Wires Are Not Interchangeable: Even if Bank 1 Sensor 1 and Bank 2 Sensor 1 look similar, the wires and connectors are often different. Always match the part number.
- Aftermarket Sensors May Not Work: Many cheap sensors cause check engine lights because their signals are not precise enough. For best results, use OEM or high-quality brands.
Credit: www.engineeringchoice.org
When To See A Professional
If you are unsure which sensor needs replacing, ask a professional mechanic. Some issues, like broken sensor threads or damaged wiring, require special tools and skills.
For more technical information, you can check resources like Wikipedia’s page on oxygen sensors.
Frequently Asked Questions
What Is The Main Difference Between Bank 1 And Bank 2?
Bank 1 is the side of the engine with cylinder 1, while Bank 2 is the opposite side. Each bank has its own set of oxygen sensors. The exact side depends on the engine’s design and manufacturer.
How Can I Tell Which Sensor Is Upstream Or Downstream?
Upstream sensors are located before the catalytic converter (closer to the engine), and downstream sensors are after the converter (closer to the tailpipe). The converter is often a large, metal “can” in the exhaust system.
Are Bank 1 And Bank 2 Sensors Interchangeable?
No, they are not. The wiring and signal are often different. Swapping them can cause more engine problems. Always use the correct sensor for the bank and position.
Can I Drive With A Faulty O2 Sensor?
You can, but it’s not recommended. The engine may run poorly, use more fuel, and pollute more. In some cases, you could damage the catalytic converter or fail emissions tests.
Why Does My Car Have More Than Two Oxygen Sensors?
Cars with V6 or V8 engines often have four sensors (two per bank). Some cars have even more, especially if they have multiple catalytic converters or advanced emission systems.
Understanding Bank 1 vs Bank 2 sensor locations helps you make smart repair choices, avoid mistakes, and keep your car running smoothly. If you ever get confused, check your service manual or ask a trusted mechanic for help. Taking a few minutes to find the right information can save hours of frustration and hundreds of dollars in repairs.
