Testing your car battery at home can save you time and money. If your car won’t start or the lights are dim, the battery might be the problem. But you don’t need to guess—you can check the battery’s health using a multimeter. This tool is easy to use, even for beginners. You don’t need advanced skills or expensive equipment. With some care and the right steps, you can know if your battery needs charging, replacement, or just a little maintenance.
In this guide, you’ll learn exactly how to test a car battery with a multimeter. You’ll see what readings mean, how to avoid common mistakes, and tips that even car owners often miss. Whether your car is new or old, these steps will help you understand your battery’s condition and avoid breakdowns.
What Is A Multimeter And Why Use It?
A multimeter is a small, handheld device that measures electrical values like voltage, current, and resistance. For car batteries, you mainly use it to measure voltage. Multimeters come in two main types:
- Analog multimeter: Uses a needle to show readings. It’s less common today.
- Digital multimeter (DMM): Shows numbers on a screen. Easier for most people.
Testing a car battery with a multimeter is reliable because it gives you real numbers. You don’t have to guess based on how your car sounds or looks. It’s also much safer than touching wires or guessing with trial and error.
Preparing To Test Your Car Battery
Before you test your battery, you need to be safe and organized. Here’s what to do:
- Turn off the car. Make sure the engine and all electronics (lights, radio) are off. This prevents wrong readings.
- Wear gloves and eye protection. Batteries can leak acid. Protect yourself.
- Check for corrosion. Look for white or blue powder around the battery terminals. If you see it, clean with a wire brush and baking soda solution.
- Find your multimeter. Make sure it works. If unsure, test on a household battery first.
- Know your battery type. Most car batteries are 12-volt lead-acid. If you have an electric vehicle, the battery may be different.
Understanding Battery Voltage
Knowing what numbers to expect is important. A healthy, fully charged car battery should read 12.6 volts or higher when the engine is off.
Here’s a quick reference for typical battery voltages:
| Battery Condition | Voltage (Engine Off) |
|---|---|
| Fully Charged | 12.6 – 12.8 V |
| Good (Needs Charging Soon) | 12.4 – 12.6 V |
| Weak (Charge Immediately) | 12.1 – 12.4 V |
| Dead or Damaged | Below 12.0 V |
If your battery is below 12. 0 volts, it may not start your car. Above 12. 6 volts is ideal. Sometimes, after charging, you may see higher voltages (13+), but these drop after a few hours.
Step-by-step Guide: Testing Your Car Battery
Follow these steps to test your car battery with a multimeter. Each step is important. Don’t skip any.
Step 1: Set Up The Multimeter
- Turn the multimeter dial to DC voltage (marked as ‘V’ with a straight line and dotted line below).
- Set the range to at least 20V if your multimeter is not auto-ranging.
Step 2: Connect The Probes
- Plug the black probe into the ‘COM’ port.
- Plug the red probe into the ‘V’ port.
- Hold the black probe on the battery’s negative (-) terminal.
- Hold the red probe on the positive (+) terminal.

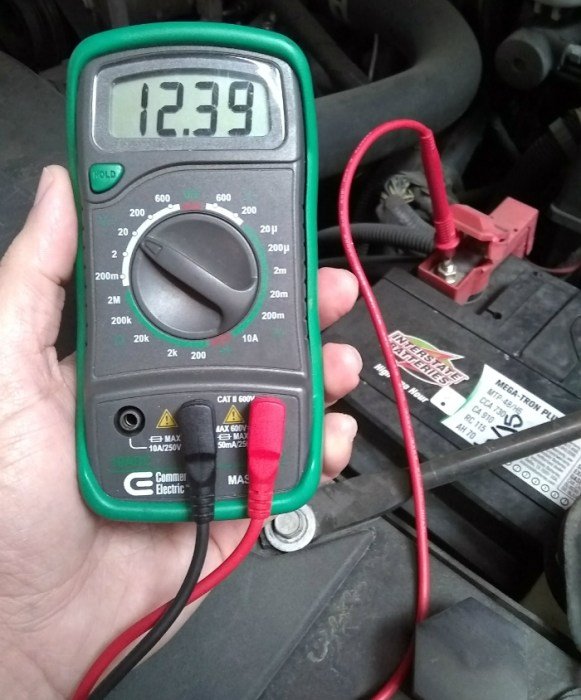

Step 3: Read The Display
- Look at the multimeter screen. The number is the battery’s voltage.
- Make sure the probes are touching metal, not just plastic caps.
Step 4: Interpret The Results
- If the reading is 12.6V or above, your battery is healthy.
- If it’s 12.4V to 12.6V, it’s OK but may need charging.
- If it’s 12.1V to 12.4V, the battery is weak.
- Below 12.0V means the battery is very weak or dead.
Step 5: Test Under Load (optional)
Sometimes, a battery shows good voltage but fails under stress. You can test under load:
- Ask a friend to turn on the headlights (without starting the engine).
- Watch the voltage. If it drops below 12.0V quickly, the battery may be weak.
Step 6: Test With Engine Running (optional)
- Start the car.
- Measure voltage again. It should be 13.7V to 14.7V. This shows the alternator is charging the battery.
If voltage is lower, the alternator may be faulty. If higher than 15V, the alternator may overcharge and damage the battery.
Common Mistakes When Testing Car Batteries
Even experienced car owners make mistakes. Here are errors to avoid:
- Testing right after charging: Wait at least one hour after charging to get a true reading.
- Not cleaning terminals: Dirt and corrosion block electricity and change the reading.
- Wrong multimeter setting: Using AC instead of DC will show wrong numbers.
- Touching probes to plastic: Only touch metal parts of the terminal.
- Testing with engine running: Always test first with engine off for battery health.
Signs Your Battery Needs Replacement
Sometimes, testing is not enough. Look for other signs:
- Slow engine start: If your car cranks slowly, the battery is weak.
- Dim headlights: Lights look weak even when the engine is running.
- Electrical issues: Radio, windows, or dashboard lights don’t work well.
- Repeated jump starts: Needing a jump more than once a month is a bad sign.
- Swollen battery case: The battery looks bloated. This is dangerous.
If you see these signs and your voltage is low, it’s time to replace your battery.

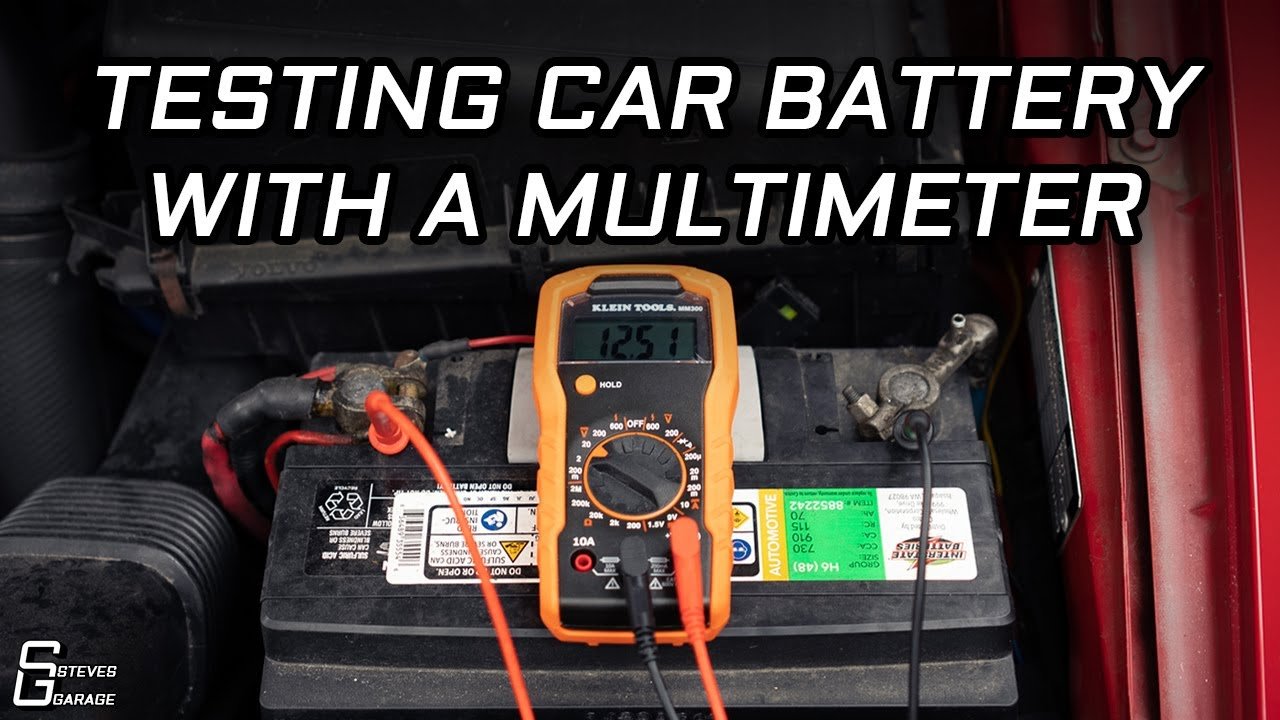

Credit: www.youtube.com
How Often Should You Test Your Car Battery?
Most car owners never test their battery until the car fails. But regular testing helps avoid surprise breakdowns. Here’s a simple schedule:
| Car Usage | Testing Frequency |
|---|---|
| Daily driving | Every 6 months |
| Occasional driving | Every 3 months |
| Stored for long periods | Before and after storage |
| Old battery (3+ years) | Every 1-2 months |
Testing more often is smart if your battery is old or your climate is very cold or hot.
Multimeter Comparison: Analog Vs. Digital
If you’re buying a multimeter, here are the differences:
| Type | Ease of Use | Accuracy | Price Range |
|---|---|---|---|
| Analog | Harder for beginners | Lower | $10–$20 |
| Digital | Easy for all | Higher | $15–$50 |
Digital multimeters are best for most car owners. They are simple and reliable.
Two Non-obvious Insights About Battery Testing
Many guides miss these points:
- Voltage is not everything: A battery may show 12.6V but still be weak if it cannot deliver power under load. That’s why the “load test” (using headlights or a tester) is important.
- Temperature affects results: Cold weather lowers voltage readings. Always test at room temperature for most accurate numbers. If you test outside in winter, expect slightly lower readings.
Practical Tips For Reliable Results
- Keep multimeter batteries fresh. A weak meter can show wrong numbers.
- Record results each time. This helps you spot battery decline before failure.
- Check alternator too. If voltage is low with engine running, test alternator output.
- Buy a quality multimeter. Cheap ones may show incorrect numbers. Choose a trusted brand.

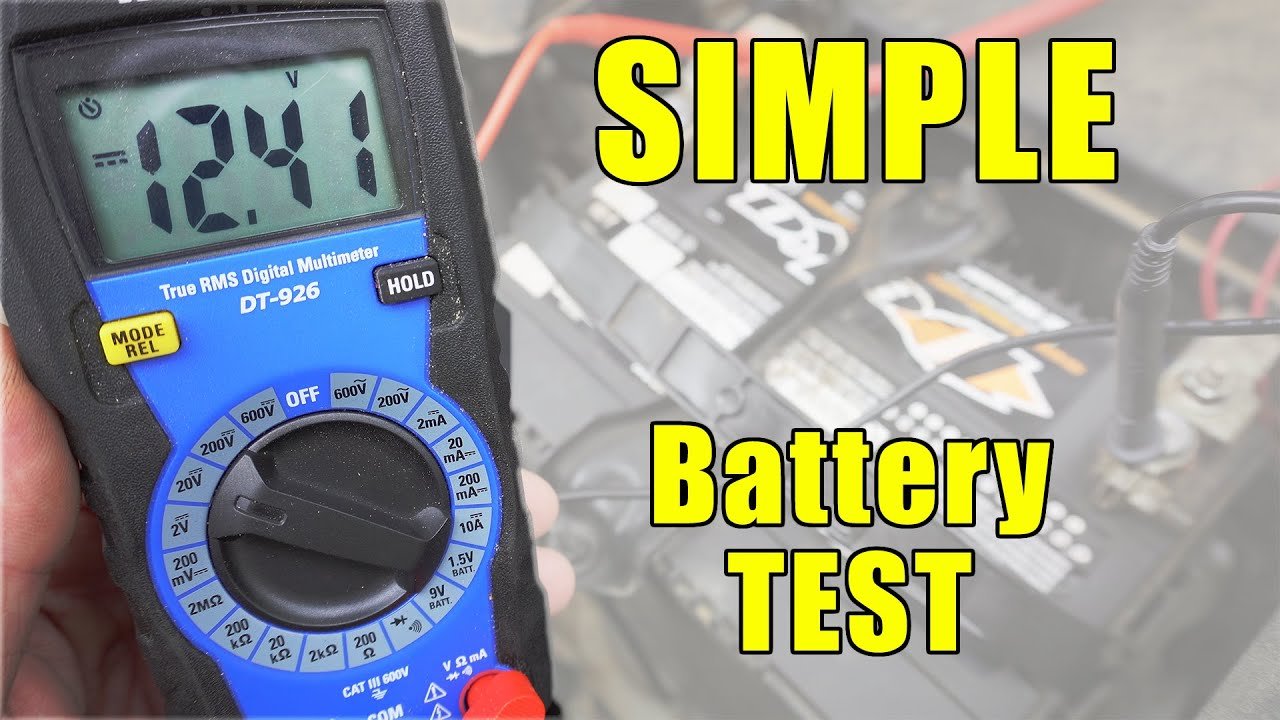

Credit: www.youtube.com
What To Do If Your Battery Is Weak
If your battery tests low, you have options:
- Recharge: Use a car battery charger. Follow instructions carefully.
- Jump start: If urgent, jump start the car, but this is only temporary.
- Replace: If battery is old or won’t hold charge, buy a new one.
Don’t ignore a weak battery. It can fail suddenly and leave you stranded.
Safety Reminders
Car batteries are safe if handled carefully, but they can cause harm:
- Avoid sparks. Never touch both terminals together.
- Ventilate the area. Batteries may release gas.
- Dispose properly. Old batteries must go to recycling centers.
If you see leaks or swelling, handle with care and wear protection.
When Should You See A Professional?
You can test your battery at home, but some situations need expert help:
- Repeated failures: If your battery fails often, a mechanic can check for hidden issues.
- Alternator problems: If voltage is wrong with engine running, it’s not just the battery.
- Battery replacement: Some cars have difficult battery locations.
If unsure, visit a trusted mechanic. They have special tools and knowledge.
Frequently Asked Questions
What Should I Do If My Multimeter Shows A Negative Voltage?
A negative reading means you connected the probes backward. Swap the red and black probes. Always red to positive, black to negative.
Can I Test A Battery While It’s Still Installed In The Car?
Yes, you can. Testing installed batteries is safe and gives accurate results. Just make sure the car is off and electronics are not running.
How Long Does A Typical Car Battery Last?
Most car batteries last 3–5 years. Climate, driving habits, and maintenance affect this. If your battery is older, test more often.
Is It Safe To Test A Battery After Driving?
Wait at least one hour after driving or charging. This lets the battery settle and gives a true voltage reading.
Can A Multimeter Test The Battery’s Capacity?
No, a multimeter only shows voltage. Capacity (how much energy the battery can hold) needs a “load test. ” For this, use a battery tester or visit a mechanic.
Testing your car battery with a multimeter is simple, accurate, and saves money. It helps you avoid sudden failures and keeps your car running smoothly. With the right steps and care, you can know your battery’s health in minutes. If you need more details or want to compare multimeter brands, check Wikipedia’s Multimeter page for deeper insights. Remember to test regularly, follow safety tips, and act quickly if your battery is weak. This way, you’ll keep your car reliable and avoid surprises on the road.
Credit: www.pomonaswapmeet.com
Conclusion
Testing your car battery with a multimeter is one of the smartest habits you can build as a car owner. It takes only a few minutes, costs nothing extra, and gives you clear, reliable information about your battery’s health. By following the steps in this guide—setting up the multimeter correctly, reading the voltage accurately, and checking both under normal and loaded conditions—you can catch battery problems early and avoid getting stranded.
Remember to test regularly based on your driving habits, keep your battery terminals clean, and always wait at least an hour after driving or charging before testing. If your readings fall below 12.0V or your battery shows signs of weakness despite a decent voltage, don’t delay—either recharge or replace it promptly. A small investment of time in battery maintenance today can save you from a much bigger headache on the road tomorrow.
