U0100 Lost Communication With ECM: Causes, Symptoms, and Fixes

Every driver dreads seeing a warning light on the dashboard, especially when it leads to strange car behavior. One common but confusing problem is the U0100 code, which means “Lost Communication With ECM.” This error can leave drivers uncertain, worried, and sometimes stranded. Understanding this code is important for anyone who wants to keep their vehicle running smoothly and avoid unexpected breakdowns.

The ECM, or Engine Control Module, is like the brain of your car. It controls important systems and needs to talk to other modules to make sure everything works together. When this communication is lost, your car may start to act strangely or might not work at all. In this article, you’ll learn what the U0100 code means, why it happens, how to diagnose it, and how to fix it step by step.

What Does U0100 Mean?

The U0100 code stands for “Lost Communication With ECM/PCM ‘A’.” ECM means Engine Control Module, and PCM means Powertrain Control Module (in some vehicles, these are the same part). When your car’s computer system sets this code, it’s telling you that it cannot talk to the ECM at all. This can cause all sorts of problems, from poor engine performance to a complete no-start condition.

The ECM’s main job is to manage fuel injection, ignition timing, emissions, and many other engine functions. It receives data from sensors, processes that data, and sends commands to make sure your car runs efficiently. If the ECM can’t talk to other parts, it can’t do its job.

Why Does The U0100 Code Appear?

Several reasons can cause the U0100 code to appear. Here are the most common:

• Faulty wiring: Broken, corroded, or loose wires can prevent signals from reaching the ECM.
• Bad ECM: Sometimes the ECM itself stops working.
• Problems with CAN bus: The Controller Area Network (CAN) bus is like the main highway for data in your car. If it’s damaged, communication fails.
• Dead battery or low voltage: If your battery can’t provide enough power, the ECM may not work right.
• Faulty ignition switch: If the ignition switch is bad, power may not reach the ECM.

It’s important to find the real cause, not just clear the code and hope it goes away.

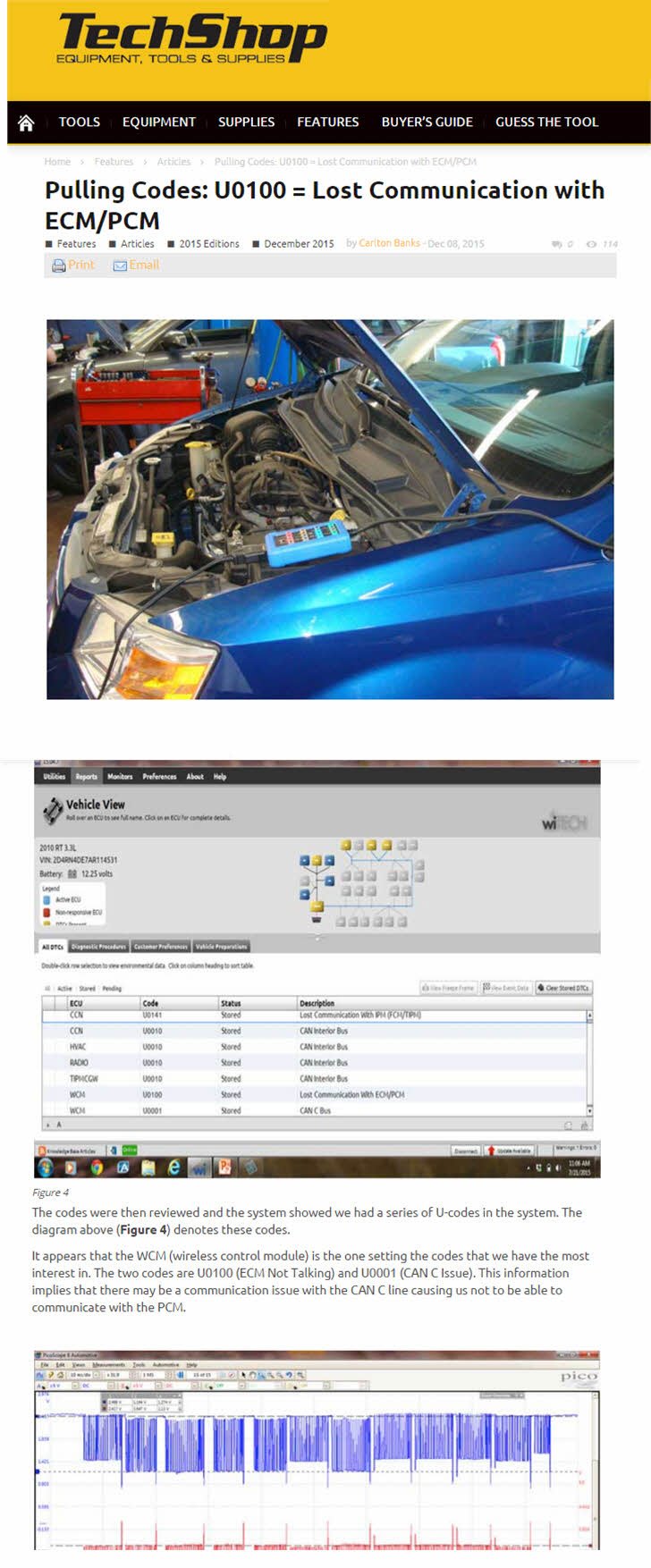

Credit: bhadraelectronics.com

Signs And Symptoms Of U0100

When the U0100 code shows up, your car may display several warning signs. Here are a few you might notice:

• Check engine light: This is usually the first sign.
• No-start condition: The engine may not crank or run at all.
• Rough running: Engine may misfire, stall, or run poorly.
• Reduced power: You might feel sluggish acceleration or poor performance.
• Other codes: Sometimes U0100 appears with other communication codes.

If you notice any of these symptoms, it’s time to act quickly.

How To Diagnose U0100: Step-by-step

Fixing the U0100 code starts with a careful diagnosis. Here’s how you or a technician can approach it:

1. Check For Other Codes

Often, U0100 appears with other codes. Scan your car with an OBD2 tool and write down all codes present. This can give clues about where the problem is.

2. Inspect The Battery And Fuses

A weak battery or a blown fuse can cause communication problems. Make sure the battery is fully charged and test it with a multimeter. Check all fuses related to the ECM and communication systems.

3. Examine Wiring And Connectors

Look for damaged, loose, or corroded wires and connectors between the ECM and other modules. Pay special attention to the CAN bus wires (often twisted pairs of wires). Repair or replace any damaged parts.

4. Test The Can Bus

Use a scan tool to check the CAN bus for activity. If there’s no signal, there could be a break in the wiring or a short circuit.

5. Inspect The Ecm

If wiring and power are okay, the ECM itself may be bad. Sometimes, swapping in a known good ECM can help confirm this (but ECMs often need programming).

6. Clear Codes And Test Drive

After repairs, clear all codes and take the car for a test drive. If the code returns, the problem is not fixed.

Common Causes And How To Fix Them

Let’s look at the main reasons for U0100 and what you can do:

Faulty Wiring

Broken wires or bad connections are a top cause. Look for:

• Frayed or cut wires
• Corroded connectors
• Loose pins in connectors

To fix: Repair or replace the damaged wire or connector. Use electrical contact cleaner for corrosion.

Faulty Ecm

Sometimes, the ECM fails due to heat, moisture, or age. If all wiring is fine but the code remains, the ECM may need replacement. Remember, new ECMs often require programming to your specific car.

Can Bus Issues

The CAN bus is a complex network. A short or open circuit can cause U0100. Use a multimeter to check for continuity between CAN High and CAN Low wires. Fix any breaks or shorts found.

Power Supply Problems

A dead battery, low voltage, or blown ECM fuse can cause communication loss. Replace the battery or fuse if needed, and make sure the alternator is charging properly.

Faulty Ignition Switch

If the ignition switch fails, it might not send power to the ECM. Test the ignition switch with a multimeter and replace if faulty.

Real-world Examples And Data

In one study, up to 30% of U0100 cases were caused by damaged wiring, especially near the engine where heat and vibration are highest. Another 20% were due to faulty ECMs. A survey of automotive repair shops found that most U0100 issues were fixed by repairing wiring or replacing a fuse. According to the U.S. Environmental Protection Agency, vehicle emissions standards and onboard diagnostic systems are designed to identify problems that can increase pollution.

For example, a 2016 Ford F-150 owner reported a no-start condition and U0100 code. After checking, a broken CAN bus wire near the firewall was found. Repairing this wire restored full communication and fixed the problem.

How Mechanics Approach The U0100 Code

Professional mechanics often follow a systematic process:

• Scan for all codes: Not just U0100, but any related codes.
• Visual inspection: Especially near the engine and ECM.
• Check technical service bulletins (TSBs): Sometimes, manufacturers release fixes for common problems.
• Use wiring diagrams: To trace circuits and find the problem.
• Test with known-good parts: When possible, to confirm a bad ECM.

This process saves time and avoids unnecessary part replacements.

Cost Of Repairing U0100

The cost depends on the root cause:

• Simple wiring repair: $50–$200
• Fuse replacement: $10–$30
• ECM replacement: $500–$1500 (including programming)
• CAN bus repair: $100–$500

DIY fixes are cheaper, but modern cars are complex. Sometimes, paying a professional is the safest option.

How To Prevent U0100

While some causes of U0100 are random, you can reduce your risk:

• Keep battery terminals clean and tight.
• Fix wiring damage quickly (rodents sometimes chew wires).
• Don’t ignore warning lights: Early action prevents bigger problems.
• Use quality parts for any repairs.
• Regularly check for recalls or TSBs from your car’s manufacturer.

Advanced Diagnostic Tips

Here are some extra insights:

• Check ground connections: A loose ground can mimic a lost ECM signal.
• Look for aftermarket devices: Poorly installed alarms or remote starters can interrupt communication.
• Heat and moisture: ECMs in wet or hot areas fail more often; protect these areas when possible.

Many beginners miss these details, focusing only on the ECM or obvious wires.

Credit: www.aeswave.com

Data Table: Common Causes Vs. Frequency

Here is a comparison showing which causes are most common based on repair shop data:

Step-by-step Example: Diagnosing U0100 In A Toyota Corolla

Let’s walk through a real example:

• Check for codes: Use a scan tool. U0100 is present, along with P0562 (low system voltage).
• Test battery: Battery shows 11.2V (low). Replace with a new battery.
• Clear codes and test drive: U0100 returns.
• Inspect wiring: Find corroded ground strap near ECM. Clean and tighten.
• Test again: No more codes. Car runs perfectly.

This shows that multiple small problems can combine to cause U0100. Always check basics first.

How U0100 Affects Different Car Brands

Different brands have different weak points:

• Ford: Often caused by wiring near the firewall.
• GM/Chevrolet: ECM water damage is common.
• Toyota: Ground strap corrosion can cause U0100.
• BMW: Aftermarket electronics can disrupt CAN bus.

Always check your vehicle’s specific service bulletins for known issues.

Data Table: Typical Repair Costs By Vehicle Brand

Costs can vary between brands. Here’s a sample:

When To Call A Professional

If you’re comfortable with basic tools, you can check batteries, fuses, and visible wiring. But if the problem is deeper (inside the CAN bus or ECM), a professional mechanic with advanced tools is your best bet. Modern cars use complex computer networks, and a small mistake can lead to big repair bills.

Useful Resources

You can find more about diagnostic procedures and ECM communication issues at the Wikipedia OBD page.

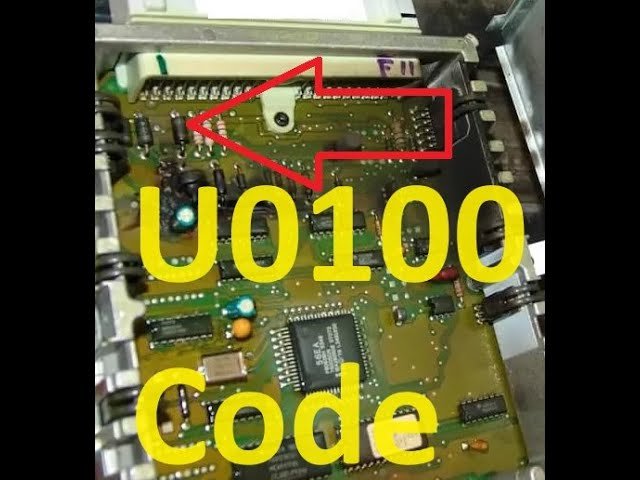

Credit: www.youtube.com

Frequently Asked Questions

What Is The Ecm In A Car?

The Engine Control Module (ECM) is the main computer that manages engine functions like fuel injection, ignition timing, and emissions control. It communicates with other modules to keep your car running smoothly.

Can I Drive With The U0100 Code?

It depends. Sometimes, the car will run but with reduced power or other problems. In some cases, the engine won’t start at all. Driving with U0100 is not recommended, as you could get stranded or cause more damage.

How Do I Reset The U0100 Code?

Fix the root cause first (bad wiring, battery, ECM, etc. ), then use an OBD2 scan tool to clear the code. If you only clear the code without fixing the problem, it will return.

Is U0100 Covered Under Warranty?

If your car is still under manufacturer’s warranty, ECM problems are often covered. Check with your dealership or warranty provider for details.

Do I Need To Replace The Ecm For U0100?

Not always. Most U0100 codes are caused by wiring, battery, or fuse issues. Only replace the ECM if you’ve confirmed it’s faulty after checking everything else.

If you’re facing a U0100 code, take your time and check each possible cause carefully. Modern cars are complex, but with patience and the right approach, you can solve most problems and keep your vehicle running strong.
